introduction

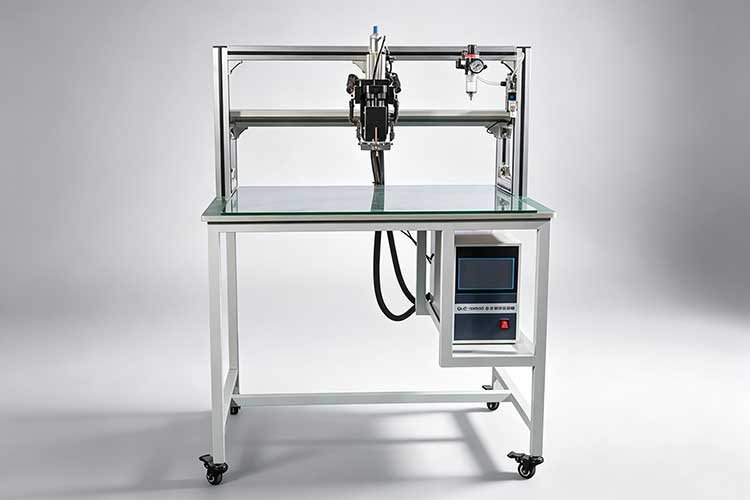

In the lithium battery PACK production process, the spot welding process directly determines the connection quality and long-term reliability of the battery module. Currently, the industry generally faces several technical challenges: cylindrical cell modules have a large number of weld points that are densely arranged, and traditional equipment is prone to defects such as incomplete welds, false welds, and burn-through; the thickness of nickel sheets varies greatly from 0.02mm to 0.3mm, and different materials have significantly different requirements for welding parameters; long-term continuous operation leads to high-temperature heat accumulation on the welding head, and heat conduction to the cell can easily damage the separator and shorten battery life; metal splatter falling into the gaps between cells can induce hidden safety issues such as micro-short circuits.
Table of Contents
Equipment selection criteria based on core technologies
Consistency between power system and welding
Cylinder-driven welding systems are prone to unstable welding pressure due to air pressure fluctuations. Pure electric servo welding heads, on the other hand, employ precision pressure control to maintain a constant welding pressure and allow for fine adjustment. Combined with a buffer mechanism, this ensures consistent weld joints while preventing damage to the battery cells from hard impacts.
Motion Precision and Transmission Durability
Lithium-ion battery module solder joint spacing is typically in the millimeter range, requiring equipment with a repeatability accuracy of 0.1mm. The transmission system utilizes precision lead screw and guide rail modules, which, compared to ordinary transmission structures, offer lower noise operation, smoother sliding, and wear resistance. Long-term use is less prone to jamming and deformation, reducing equipment failure rates and maintenance costs. The multi-axis control system needs to be specifically equipped with 4-axis, 5-axis, or 8-axis motion systems depending on whether single-sided or double-sided welding is required, ensuring axis coordination.
Material Compatibility and Process Flexibility
The equipment must be compatible with nickel sheet welding thicknesses ranging from 0.02-0.3mm, and be equipped with unipolar or bipolar welding power supplies (5000A-13000A optional). Unipolar power supplies are suitable for conventional welding, while bipolar power supplies can improve the welding effect of thicker nickel sheets. The modular welding head design supports switching between bump welding and point welding modes. Some equipment also features a 135° rotating welding head to accommodate slotted, irregularly shaped nickel sheets, overcoming the limitation of traditional equipment that cannot adjust the welding angle.
The Substantial Impact of Intelligent Functions on Production Efficiency
Programming System and Changeover Efficiency
The equipment supports both manual easy programming and CAD path import. Manual programming allows operators to quickly learn, while CAD import enables the free planning of complex welding paths, overcoming the limitation of manual programming in mixing horizontal and vertical spot welding. Multiple module recipe storage functions (typically storing 190 sets) cover different battery cell and nickel sheet materials and working conditions. Parameters can be directly recalled when switching products without repeated adjustments, supporting flexible production of multiple varieties.
Quality Early Warning and Operation and Maintenance Management
The welding pin life counting and alarm function automatically counts the number of times the welding pin is used, providing early reminders for replacement and avoiding batch defects caused by welding pin wear. Fixture in-place detection combined with fault audible and visual alarms automatically identifies the tooling placement status, immediately alarming in case of weld explosions or incomplete welds, enabling rapid positioning. Breakpoint welding continuation and power failure protection functions ensure that production interruptions do not require rework restarts, reducing material waste. Some equipment is equipped with a repair welding function that supports fine repair of single points or areas, improving the finished product qualification rate.
Data Traceability and MES Integration
The industrial control system can monitor and record parameters such as welding current, voltage, time, and energy in real time. Data is stored locally and supports time-based querying and text export, enabling traceability of the welding process. This is of substantial value for customer factory audits and the establishment of quality management systems.
Production Line Integration Capabilities and Automation Upgrades
Assembly Line Integration Design
The double-sided model supports both forward-to-forward and forward-to-backward discharge methods, seamlessly integrating with automated lithium battery production lines. The single-sided model employs a dual-platform design, enabling cyclical operation at each workstation and improving overall throughput efficiency. Automatic belt conveyor combined with automatic induction welding using fixtures allows for fully automated forward-to-backward operation, with the back end directly transferring to downstream processes.
Integrated Line Solution Collaboration
Spot welding equipment needs to form a complete production line closed loop with cell sorting machines, labeling machines, CCD inspection equipment, etc. For example, in a fully automated cylindrical lithium battery production line, after sorting, labeling, and polarity detection, the cells enter the spot welding station, where they are then double-sided welded via a flipping mechanism. This can achieve a production capacity of 3000 cells per hour, requiring 3 operators. This integrated line solution reduces production cycle time from minutes to seconds, significantly reducing reliance on manual labor and material handling distances.
Comprehensive evaluation framework for selection decision
When selecting lithium battery spot welding machines, enterprises are advised to establish an evaluation framework encompassing four dimensions: technical parameters, level of intelligence, service capabilities, and cost control.
Technical Dimension: Focus on the welding head power type (servo or cylinder), positioning accuracy (whether it reaches 0.1mm), cooling method (water cooling or natural cooling), and the degree of modularity of the welding head.
Intelligence Dimension: Evaluate the programming method (manual vs. CAD import), the amount of recipe storage, breakpoint resuming welding function, and data traceability capabilities.
Service Dimension: Confirm the supplier’s geographical location, response time commitment, on-site service scope, and warranty period.
Cost Dimension: Comprehensively calculate the equipment purchase cost, labor savings, yield improvement benefits, and maintenance costs.
Conclusion
Through a systematic selection process, companies can find spot welding equipment that matches their production capacity, quality requirements, and budget constraints, laying a solid foundation for the automation upgrade of lithium battery PACK production lines.
